MPV 60

Excellent ultimate vacuum and pumping speed by suing high performance new materials. MPV 60 series include Improved oil anti-subpack system to protect the vacuum system in the event of sudden stop. MPV 60 Occupy international standard clamp and flange at inlet and outlet port and perform at very ow noise and vibration. Occupying strong and constant pressured oil circulating system to protect the pump. MVP 60 require very simple maintenance and oil replacement with no special tools.

Technical Data

Description
Unit
MVP 60
60
1000
50
L/min
830
Ultimate pressure
Gas ballast C
Gas ballast I
torr
torr
40
Oil filling
4.5
DN
40 KF
Outlet port
DN
40 KKF
Motor power
kW
1.5
Rotational speed of pump
R.P.M
Rotational speed of pump
R.P.M
1450
Noise level(without gas ballast)
Weight
kg
68

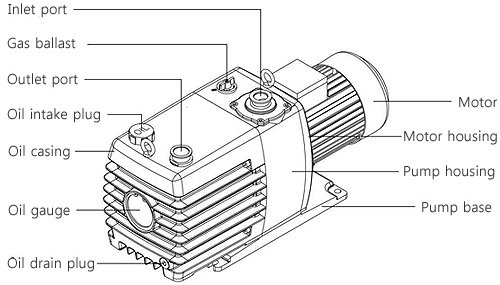

External Pump Sketch

Simplified Pump Structure Sketch

Pumping Speed Curve

Simplified Pump Structure Sketch

Outside Dimension
(unit:mm)

Model
A
B
C
D
E
F
G
H
I
J
K
N
S
M
L
MVP 60
250
185
387
30
50
368
80
255
370
305
550
428
Ø14
281
709
