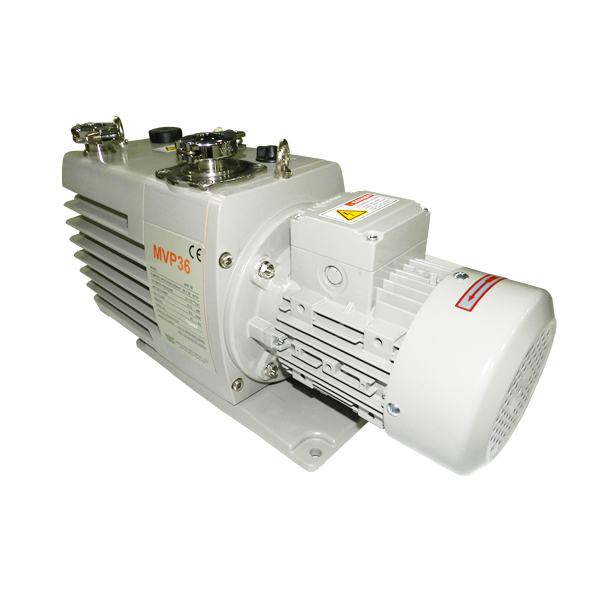

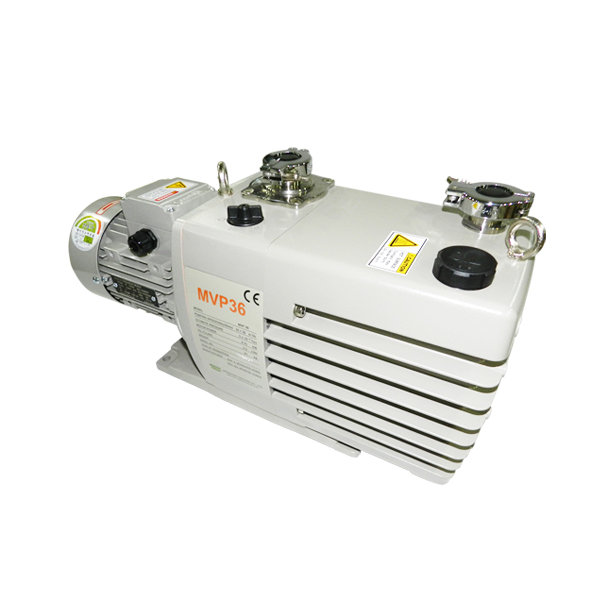

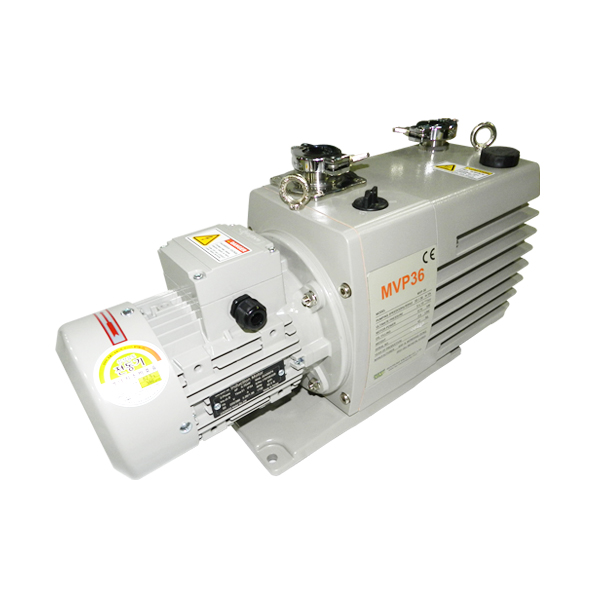

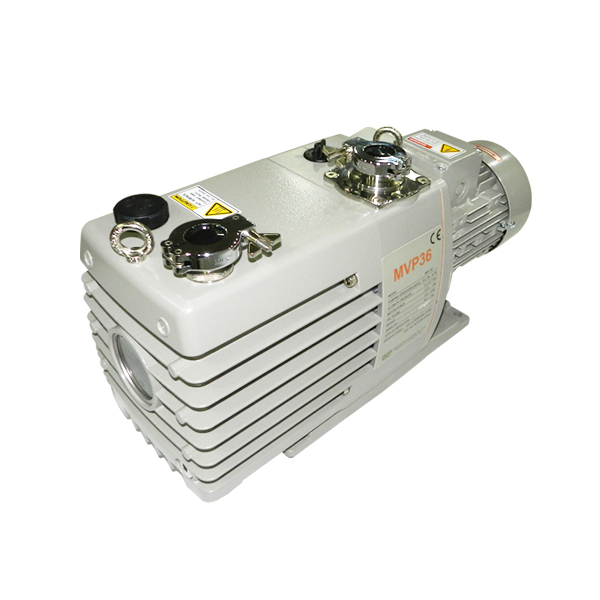

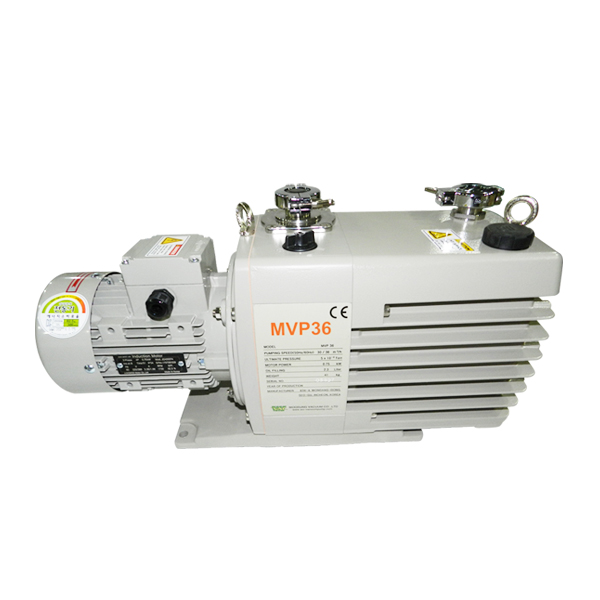

MPV 36

Excellent ultimate vacuum and pumping speed by suing high performance new materials. MPV 36 series include Improved oil anti-subpack system to protect the vacuum system in the event of sudden stop. MPV 36 Occupy international standard clamp and flange at inlet and outlet port and perform at very ow noise and vibration. Occupying strong and constant pressured oil circulating system to protect the pump. MVP 36 require very simple maintenance and oil replacement with no special tools.

Technical Data

Description
Unit
MVP 36
600
30
L/min
500
Ultimate pressure
Gas ballast C
Gas ballast I
torr
torr
25
Oil filling
2.3
DN
Outlet port
DN
25 KF
Motor power
kW
0.75
Rotational speed of pump
R.P.M
Rotational speed of pump
R.P.M
1450
Noise level(without gas ballast)
52
Weight
kg
41

External Pump Sketch

Simplified Pump Structure Sketch

Pumping Speed Curve

Simplified Pump Structure Sketch

Outside Dimension
(unit:mm)

Model
A
B
C
D
E
F
G
H
I
J
K
N
S
M
L
MVP 36
210
140
297
40
50
282
58
210
288
147
310
342
Ø12
234
576
