Vacuum Pump MVP 24

Excellent ultimate vacuum and pumping speed by suing high performance new materials. MVP 24 series include
Improved oil anti-subpack system to protect the vacuum system in the event of sudden stop. MVP 24
Occupy international standard clamp and flange at inlet and outlet port and perform at very ow noise and vibration.
Occupying strong and constant pressured oil circulating system to protect the pump.
MVP 24 require very simple maintenance and oil replacement with no special tools.

Request a Quote

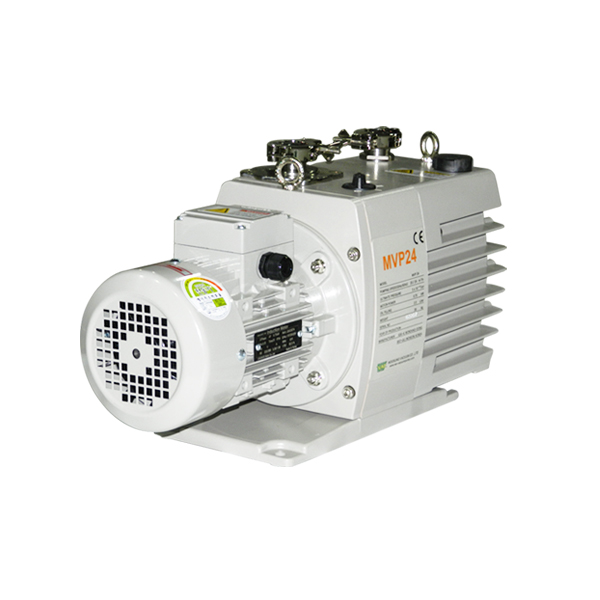

WS-WooSung MVP 24 Vacuum Pump – Industrial-Grade High-Capacity Rotary Vane Pump

The WS-WooSung MVP 24 is a heavy-duty, two-stage rotary vane vacuum pump built for demanding industrial and scientific applications that require high vacuum performance with a large flow rate. Precision-engineered in Korea, the MVP 24 combines reliability, durability, and low-maintenance operation, making it a go-to choice for vacuum systems across labs, factories, and research institutions.

🔑 Key Features:

High pumping speed of 24 CFM (Cubic Feet per Minute)
Two-stage rotary vane mechanism for consistent deep vacuum
Reaches an ultimate vacuum of 1 x 10⁻³ Torr
Oil-sealed design with gas ballast for vapor handling
Built-in thermal protection for long operational life
Low noise and vibration, despite high capacity
Durable aluminum housing and corrosion-resistant components

Ideal Applications for the MVP 24 Vacuum Pump

Freeze dryers (lyophilizers) in pharmaceutical and biotech industries
Vacuum ovens, distillation, and filtration systems
Vacuum coating and deposition systems
Industrial degassing and resin processing
Analytical lab instruments (SEM, mass spectrometry)
Glove boxes and high-throughput laboratory setups

Technical Data

Description		Unit	MVP 24
Displacement speed	60 HZ	m3/h	24
Displacement speed	60 HZ	L/min	400
Displacement speed	50 HZ	m3/h	20
Displacement speed	50 HZ	L/min	335
Ultimate pressure	Gas ballast C	torr	5 x 10-4
Ultimate pressure	Gas ballast I	torr	5 x 10-3
Ultimate pressure	Gas ballast II	torr	5 x 10-2
Water vapor tolerance		torr	25
Oil filling		L	2.0
Inlet port		DN	25 KF
Outlet port		DN	25 KF
Motor power		kW	0.75
Rotational speed of pump	60 Hz	R.P.M	1750
Rotational speed of pump	50Hz	R.P.M	1450
Noise level(without gas ballast)		DB	52
Weight		kg	38
