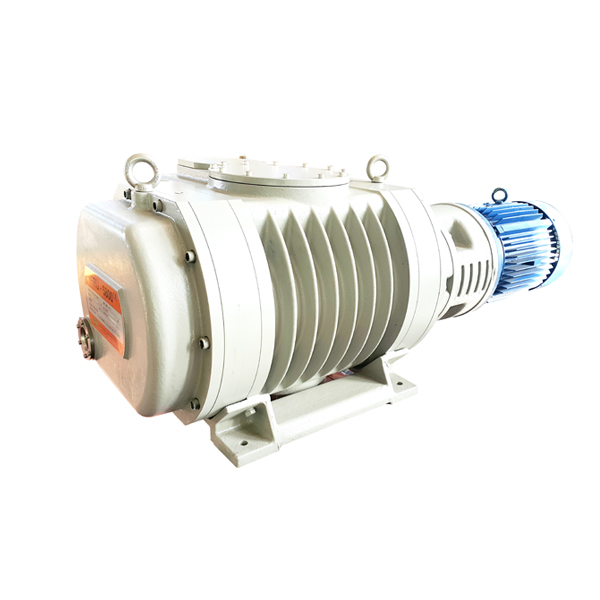

FRU 5800
FRU 5800 use saving energy consumption by reduced operating time by inhaling from ambient pressure. FRU 5800 use steady and excellent performance and applicable in all vacuum applications with air-cooling system The pump have two outlet port, vertical and horizontal, to enable convenient piping with backing pump. Also, ISO flange is used for inlet and outlet port Low vibration level, low noise level, easy maintenance and repairing.
Technical Data
|
Description
|
|
Unit
|
FRU 5800
|
|---|---|---|---|
|
50 HZ
|
4800
|
||
|
m3/h
|
5880
|
||
|
Ultimate pressure with 2 stage backing pump
|
|
torr
|
5 x 10-5
|
|
Inlet pressure(max. continuous)
|
|
torr
|
760
|
|
Inlet port
|
|
ISO
|
250
|
|
Outlet port
|
|
ISO
|
200
|
|
Motor
|
Power
|
kW
|
15
|
|
Motor
|
Voltage (50)
|
Volt
|
220/380~420
|
|
Motor
|
Voltage (60)
|
Volt
|
220/380/440
|
|
Rotational speed of pump 50Hz
|
R.P.M
|
3000
|
|
|
Rotational speed of pump
|
60 Hz
|
R.P.M
|
3600
|
|
Oil filling
|
|
Liter
|
7.0
|
|
Weight
|
|
kg
|
884
|
Outside Dimension
(unit:mm)
|
Model
|
A
|
B
|
C
|
D
|
E
|
F
|
G
|
H
|
I
|
J
|
K
|
L
|
M
|
N
|
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
FRU 5800
|
1483
|
680
|
592
|
480
|
480
|
190
|
430
|
285
|
255
|
255
|
388
|
80
|
278
|
Ø18
|
Dimensions of ISO flange
|
Standard
|
a
|
b
|
n
|
D
|
|---|---|---|---|---|
|
ISO63
|
130
|
110
|
4
|
M8
|
|
ISO100
|
165
|
145
|
8
|
M8
|
|
ISO160
|
225
|
200
|
8
|
M10
|
|
ISO200
|
285
|
260
|
12
|
M10
|
|
ISO250
|
335
|
310
|
12
|
M10
|
