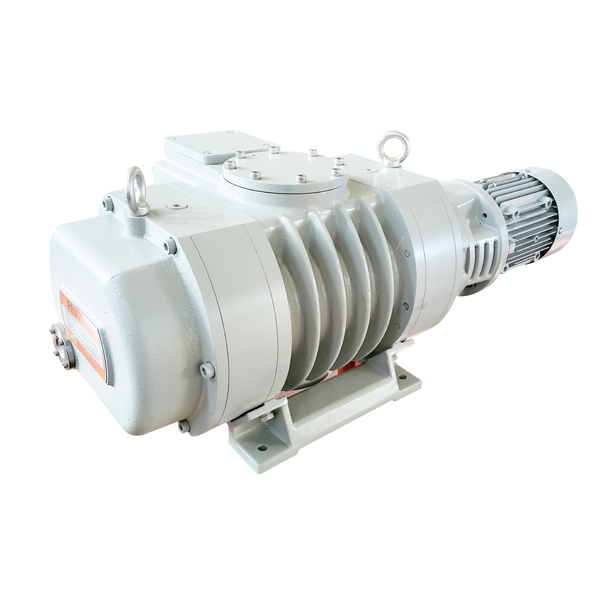

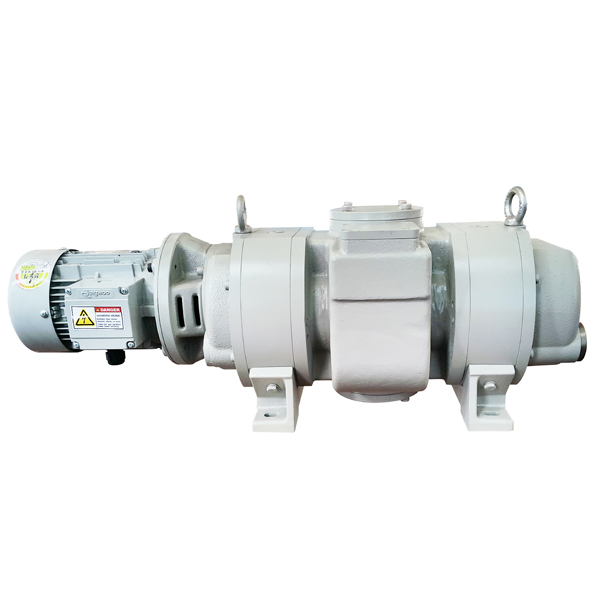

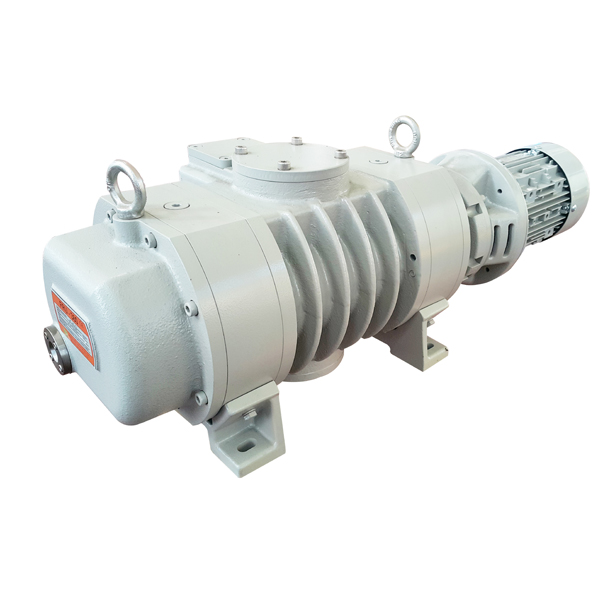

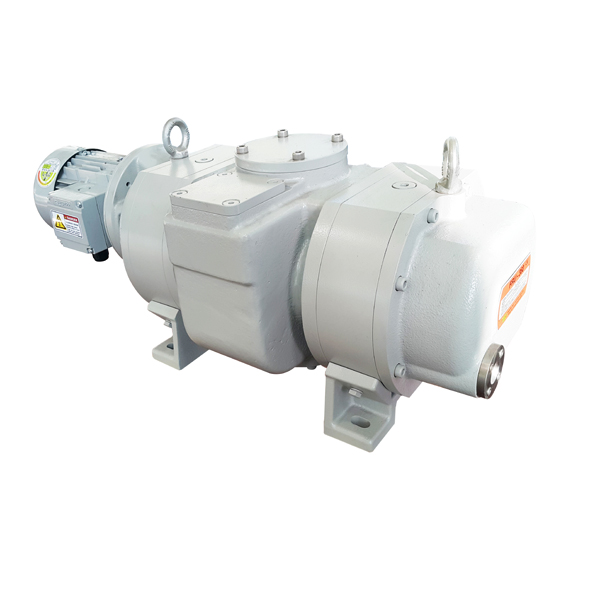

FRU 180
Design Features
Reduced energy consumption through shorter operating times by starting from ambient pressure.
Consistent, high-quality performance suitable for all vacuum applications.
Equipped with an efficient air-cooling system.
Dual outlet ports (vertical and horizontal) for flexible and convenient connection to the backing pump.
Inlet and outlet ports feature ISO-standard flanges.
Low levels of vibration and noise during operation.
Designed for easy maintenance and quick repair.
Technical Data
|
Description
|
|
Unit
|
MVP 180
|
|---|---|---|---|
|
150
|
|||
|
m3/h
|
180
|
||
|
Ultimate pressure with 2 stage backing pump
|
|
torr
|
5 x 10-5
|
|
Inlet pressure(max. continuous)
|
|
torr
|
760
|
|
Inlet port
|
|
ISO
|
63
|
|
Outlet port
|
|
ISO
|
63
|
|
Motor
|
Power
|
kW
|
0.75
|
|
Motor
|
Voltage (50)
|
Volt
|
220/380~420
|
|
Motor
|
Voltage (60)
|
Volt
|
220/380/440
|
|
Rotational speed of pump 50Hz
|
R.P.M
|
3000
|
|
|
Rotational speed of pump
|
60 Hz
|
R.P.M
|
3600
|
|
Oil filling
|
|
Liter
|
0.6
|
|
Weight
|
|
kg
|
87
|
Outside Dimension
(unit:mm)
|
Model
|
A
|
B
|
C
|
D
|
E
|
F
|
G
|
H
|
I
|
J
|
K
|
L
|
M
|
N
|
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
MVP 180
|
637
|
287
|
299
|
188
|
210
|
117
|
211
|
145
|
120
|
120
|
|
|
127
|
Ø13
|
